Fiber Laser Marking Machine for Metal and Non-Metal, Hard PVC, Keyboard, Cellphone Shell with Raycus 20W, 30W, 50W, 70W 100W Fiber Laser Marker

Basic Info

Model NO.	HFM-100W
Laser Wavelength	Fiber Laser
Laser Classification	Semiconductor Laser
Type	Optical Fiber Laser Marking Machine
Marking Method	Scanning Marking
Graphic Format Supported	Ai, BMP, Dst, Dwg, Dxf, Dxp
Certification	CE, SGS, FDA
Application Material	0.1-2mm
Lifespan	Over 20, 000hours
Name	20W Fiber Laser Marking Machinr
Marking Area	110*110mm, 175*175mm, 220*220mm, 300*300mm
Process Material	Metal and Some Non-Metal
Laser Source	Raycus, Max, Ipg, Jpt
Weight	100kg
Marking Speed	7000mm/S
Rotary Diameter	80mm 100mm 120mm
Machine Color	White
Laser Power	20W 30W 50W 70W 100W
System	Ezcad
Color Marking	Yes
Transport Package	Standard Plywood Packing for Export
Specification	650*300*700mm
Trademark	HF Future
Origin	China
HS Code	845611009
Production Capacity	500 Sets/Month

Product Description

Application Materials: Fiber Laser Marking Machine is suitable for metal engraving , For example , Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.Application Industries: Fiber Laser Marking Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

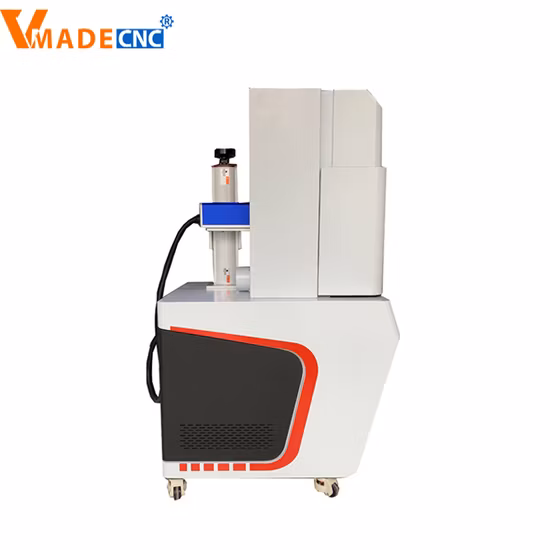

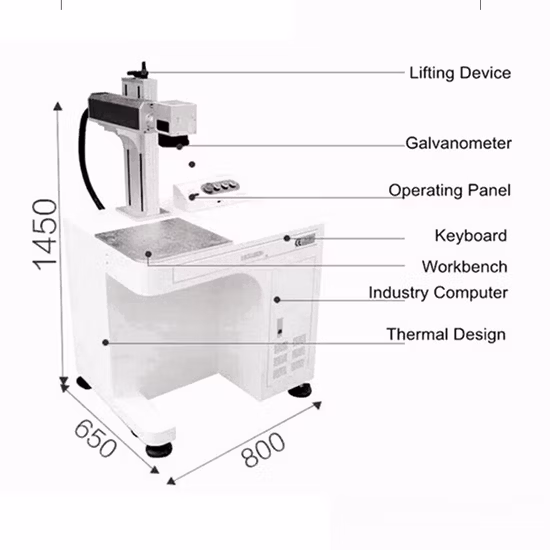

Detailed Photos

Product Parameters

Model	HFM-20W(30W/50W/100W/150W/200W)
Beam quality	M²:<1.5(TEMOO M)
Average output power	20W/(30W/50W/100W/150W/200W)
Marking speed	≤12000mm/s
Laser wavelength	1064nm
Laser repetition frequency range	20khz-100khz
Marking range	110 X 110 mm (standard)
Repeatability	0.01mm
Output fiber length	3m
Power adjustment range	10%-100%
Total power	≤500W
Cooling system	Air cooling
Output power stability	<3%
Output power stability	0ºC-40ºC
Power supply	AC220V±10%,50HZ/60HZ
File Format	BMP/DXF/PLT/JPEG/HPGL



Features of Fiber Laser Marking Machine:1. Easy operation and quick installation, Software and computer will be sent with machine . Although you changed computer in future , you can also install software again . 2. Low Cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.3. Free-Maintenance Operation: There is no need of any maintenance for laser, or cleaning the lens.4. Long Service Life: The laser metal engraving machine adopts laser diode as pumping source, the working hours can reach as long as 100,000 hours.

Packaging & Shipping

Company Profile

HF FUTURE is a trading company and manufacturer that provides laser and industrial automation equipment and parts to various industries. We offer complete automation solutions and OEM service, as well as distribution ofbrand laser and automation equipment and parts. Our team provides free consulting services, solutions, and customized services based on customers' needs.Our goal is to help our clients produce higher quality products, and increase time to market while effectively reducing customers' production and management costs.

FAQ1. What should I do if I can't operate the machine for the first time?Please don't worry, the machine operation is very simple.The operation video and usage manual will be provided with the machine together.Our engineer will do training online if you need.2. Is the packaging safe for international long-distance transportation?We will use the standard export wooden cases sponge filled inside for packing protection.The machine is covered by plastic film for waterproof. Then covered by foam to protect the machine from shaking. And the outside, we adopt the standard export wooden cases.Regardless of international express, air or sea transportation, we will try our best to protect the machine from damage during transportation.3. What should I do if there is a problem with the machine during use?Cooperate with HF Future, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.4. What forms of payment are acceptable?We can accept the payment terms like T/T, L/C, Western Union, Papal, Cash, Credit Card etc. We will do our best to facilitate customers to cooperate with us.5. If the order is confirmed, how soon can it be shipped?According to the quantity ordered. For less than 5 marking machines order, we can guarantee delivery within 7 working days. Our Advantages

1.Wide range of applications

Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.Permanent markerLaser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.2. Marking speed is fastUsing high-speed digital galvanometer, it can carry out assembly line flight marking.3. Maintenance freeBecause the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does notrequire optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.4. Easy OperationWith the basics of computer use, you can start to operate the machine within 30 minutes of training.5.Easy maintenanceThe whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.6. Low failure rateEach component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.7. Low environmental requirements0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.8. No consumables requiredNo need for any consumables, non-toxic, no environmental pollution, high environmental protection9. Red light positioningUsing red light positioning system, convenient positioning and high positioning accuracy.10. ExtensionsCan be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.11.Computer programMarking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.
