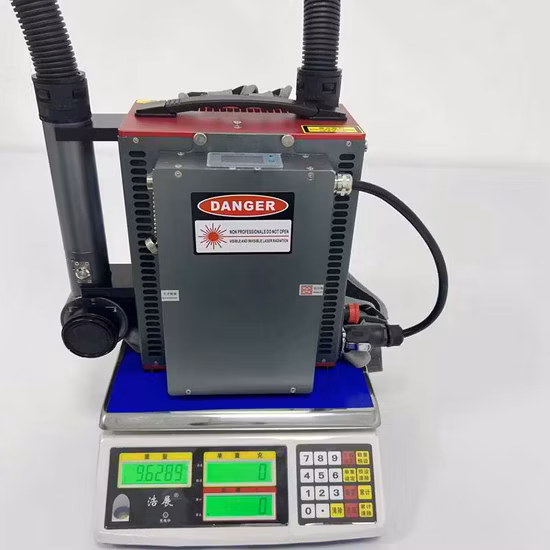

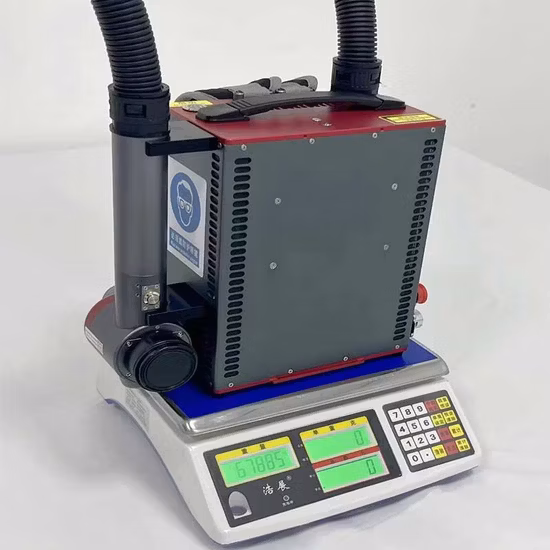

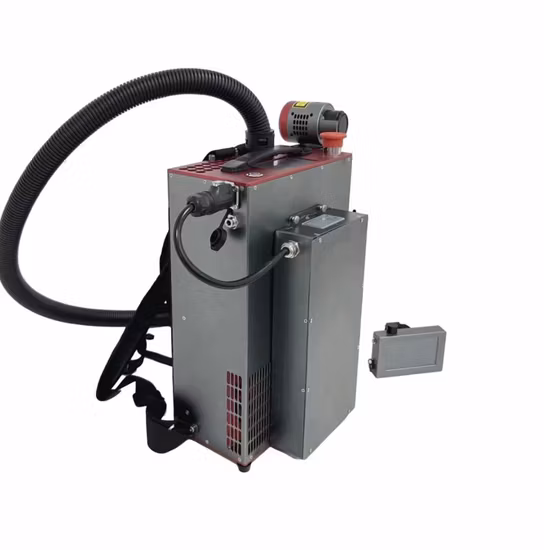

50W 100W 200W Mopa Rust Removal Backpack Pulse Laser Cleaning Machine for Paint Removal

Basic Info

Model NO.	DV-LCB
After-sales Service	Online Support and Overseas Support Available
Power	100w
Control Type	Automatic
Warranty	2 Years
Working Temperature	5-40 Degree
Selling Points	Powerful and Multi-Functional
Laser Type	Pulse Laser
Cable Length	3m
Cooling Mode	Air Cooling Cooled
Power Supply	220V, 50Hz/220V, 60Hz
Application	Metal Surface Treatment, Moulds Repair
Advantage	Non Damage to Workpiece Surface; Precise Scanning
Laser Source	Max Mopa; Jpt Mopa
Cleaning Item	Rust, Paint, Oxide Layer, Tar, Puty, Oil, Wood
Manufacturing Place	Shandong Jinan
Machine Type	Handheld Type
Selling Point	Portable and Small
Weight	12kg
Business Type	Manufacturer Factory
Transport Package	Wooden Box
Specification	1CBM
Trademark	D. Ventus
Origin	China
HS Code	8456110090
Production Capacity	50 Sets Per Month

Product Description

50W 100W 200W Mopa Rust Removal Backpack Pulse Laser cleaning machine for Paint Removal

Features:

** Non-contact cleaning without damaging the matrix of the parts;
** Accurate cleaning, which can achieve precise position, accurate size selective cleaning;
** Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
** Simple operation;
** Ergonomics design;
** High cleaning efficiency, which can largely save time cost;
** Stable cleaning system with little maintenance.



Specification of Pulse Laser Cleaner:

Operating Environment
Model	DV-LCB
Supply voltage	Optional single battery, 100W continuous work 80-90min
	Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
Power consumption	≤300W
Working environment temperature	5ºC~40ºC
Working environment humidity	≤80%
Optical Parameters
Average laser power	≥100W
Power instability	<5%
Laser Working Mode	Pulse
Pulse width	150-190ns
Maximum monopulse energy	1.7mJ
Power regulation range(%)	0-100( Gradient Adjustable)
Repeat frequency(kHz)	20-200(Gradient Adjustable)
Fiber length	1.5m
Cooling mode	Air cooling
Cleaning Head Parameters
Scan range (length * width)	0mm~100 mm, continuously adjustable;Biaxial supporting 8 scanning modes
Scanning frequency	10Hz~300Hz Continuous Adjustable
Field mirror focal length(mm)	160mm( Optional 210mm/254mm/330mm/420mm)
Depth of focus	About 5 mm
Mechanical Parameters
Machine size(Length, width and height)	About330mm×123mm×380mm(Excluding battery)
	About330mm×168mm×380mm(Including battery)
Machine Weight	About 8.5 Kg(Excluding battery)
	About 13Kg(Including battery)
Cleaning head weight (including isolator)	<0.8kg
Mode of operation	Handheld/automated

Machine Details of Laser Cleaning Machine:

Advantages :

1) High cleanliness and precise positioning cleaning;2) Non-contact cleaning, protecting brittleness material surface;3) Zero maintenance cost and environmental friendly;No chemical pollution, no noise, energy-saving;4) It can clear the pollution particles below the nanometer level and have high cleanliness;5) Fiber optic transmission can move operation, can clean the area which is not easy to reach;6) Laser cleaning can solve the problems that traditional cleaning methods can not solve with high efficiency and powerful capacity;7) With wide materials application scope.

Applications of Laser Cleaner Machine:
1) Metal surface derusting2) Surface paint removal paint treatment3) Surface without dirt, stains, dirt cleaning4) Surface coating, coating removal5) Oxide surface,Oil stain and contaminant cleaning6) Welding surface / spray surface pretreatment7) Stone figure surface dust & attachment cleaning.8) Rubber/ plastic/ metal mold residue cleaning

Applied Industries:

Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.3. We provide free repair for main spare parts within warranty period according to warranty agreement.4. We provide upgrades and maintenance for software system within warranty period.5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
